Split Flange Adapters & Kits

58 results

(SAE Code 61) Split Flange Kit

(SAE Code 62) Split Flange Kit

Split Flange (SAE Code 61) Plug

Split Flange (SAE Code 62) Plug

Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter

Split Flange (SAE Code 62) to Male SAE JIC 37° Adapter

Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter

Split Flange (SAE Code 62) to Male SAE JIC 37° 45° Elbow Adapter

Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter

Split Flange (SAE Code 62) to Male SAE JIC 37° 90° Elbow Adapter

(SAE Code 61) Split Flange Kit

ADAPTER used with STANDARD FEMALE SWIVEL (JIC) END (CODE 61). Split flange adapter connects pumps and valves with SAE flange outlets using standard hose assemblies. Constructed from Low Carbon Steel with a Zinc, yellow dichromate finish. Rated for 3000 P.S.I. working pressure (32 sizes available at 2500 P.S.I.).

Flange Diameter	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	SFK8	Log in to view price
1/2" (SAE Code 61) Split Flange Kit Item #: SFK8 Package Weight: 0.4 lbs View Product Details Log in to Order
3/4"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	SFK12	Log in to view price
3/4" (SAE Code 61) Split Flange Kit Item #: SFK12 Package Weight: 0.6 lbs View Product Details Log in to Order
1"	Code 61	Carbon Steel	Adapter	3,000 P.S.I.	1	SFK16	Log in to view price
1" (SAE Code 61) Split Flange Kit Item #: SFK16 Package Weight: 0.7 lbs View Product Details Log in to Order
1-1/4"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	SFK20	Log in to view price
1-1/4" (SAE Code 61) Split Flange Kit Item #: SFK20 Package Weight: 1 lbs View Product Details Log in to Order
1-1/2"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	SFK24	Log in to view price
1-1/2" (SAE Code 61) Split Flange Kit Item #: SFK24 Package Weight: 1.4 lbs View Product Details Log in to Order
2"	Code 61	Low Carbon Steel	Adapter	2,500 P.S.I.	1	SFK32	Log in to view price
2" (SAE Code 61) Split Flange Kit Item #: SFK32 Package Weight: 1.6 lbs View Product Details Log in to Order

(SAE Code 62) Split Flange Kit

ADAPTER used with STANDARD FEMALE SWIVEL (JIC) END (CODE 62). Split flange adapter eliminates the need for special hose ends. Interconnect pumps and valves with SAE flange outlets using low cost standard hose assemblies. Made from AIS/SAE 12L14 carbon steel with a Zinc, yellow dichromate finish. Rated for 5000 P.S.I. working pressure.

Flange Diameter	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
3/4"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFK6212	Log in to view price
3/4" (SAE Code 62) Split Flange Kit Item #: SFK6212 Package Weight: 0.9 lbs View Product Details Log in to Order
1"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFK6216	Log in to view price
1" (SAE Code 62) Split Flange Kit Item #: SFK6216 Package Weight: 1.6 lbs View Product Details Log in to Order
1-1/4"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFK6220	Log in to view price
1-1/4" (SAE Code 62) Split Flange Kit Item #: SFK6220 Package Weight: 2.3 lbs View Product Details Log in to Order
1-1/2"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFK6224	Log in to view price
1-1/2" (SAE Code 62) Split Flange Kit Item #: SFK6224 Package Weight: 3.9 lbs View Product Details Log in to Order

Split Flange (SAE Code 61) Plug

Split flange adapter for standard female swivel (JIC) end (Code 61) eliminates the need for special hose ends. Interconnects pumps and valves with SAE flange outlets using low-cost standard hose assemblies. Made of Low Carbon Steel with Zinc, yellow dichromate finish. Rated for 3000 P.S.I. working pressure (32 sizes - 2500 P.S.I.).

Flange Diameter	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	2	SFP08	Log in to view price
1/2" Split Flange (SAE Code 61) Plug - 2 Pack Item #: SFP08 Package Weight: 0.2 lbs View Product Details Log in to Order
3/4"	Code 61	Carbon Steel	Adapter	3,000 P.S.I.	2	SFP12	Log in to view price
3/4" Split Flange (SAE Code 61) Plug - 2 Pack Item #: SFP12 Package Weight: 0.4 lbs View Product Details Log in to Order
1"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	2	SFP16	Log in to view price
1" Split Flange (SAE Code 61) Plug - 2 Pack Item #: SFP16 Package Weight: 0.6 lbs View Product Details Log in to Order
1-1/4"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	2	SFP20	Log in to view price
1-1/4" Split Flange (SAE Code 61) Plug - 2 Pack Item #: SFP20 Package Weight: 0.8 lbs View Product Details Log in to Order
1-1/2"	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	SFP24	Log in to view price
1-1/2" Split Flange (SAE Code 61) Plug Item #: SFP24 Package Weight: 0.6 lbs View Product Details Log in to Order
2"	Code 61	Low Carbon Steel	Adapter	2,500 P.S.I.	1	SFP32	Log in to view price
2" Split Flange (SAE Code 61) Plug Item #: SFP32 Package Weight: 1 lbs View Product Details Log in to Order

Split Flange (SAE Code 62) Plug

ADAPTER used with STANDARD FEMALE SWIVEL (JIC) END (CODE 62). Split flange adapter connects pumps and valves with SAE flange outlets using standard hose assemblies. Constructed from AIS/SAE 12L14 carbon steel with a Zinc, yellow dichromate finish. Rated for a working pressure of 5000 P.S.I.

Flange Diameter	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1/2"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFP6208	Log in to view price
1/2" Split Flange (SAE Code 62) Plug Item #: SFP6208 Package Weight: 0.1 lbs View Product Details Log in to Order
3/4"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFP6212	Log in to view price
3/4" Split Flange (SAE Code 62) Plug Item #: SFP6212 Package Weight: 0.3 lbs View Product Details Log in to Order
1"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFP6216	Log in to view price
1" Split Flange (SAE Code 62) Plug Item #: SFP6216 Package Weight: 0.5 lbs View Product Details Log in to Order
1-1/4"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFP6220	Log in to view price
1-1/4" Split Flange (SAE Code 62) Plug Item #: SFP6220 Package Weight: 0.8 lbs View Product Details Log in to Order
1-1/2"	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	SFP6224	Log in to view price
1-1/2" Split Flange (SAE Code 62) Plug Item #: SFP6224 Package Weight: 1.3 lbs View Product Details Log in to Order

Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter

ADAPTER used with STANDARD FEMALE SWIVEL (JIC) END (CODE 61). Split flange adapter eliminates the need for special hose ends. Interconnect pumps and valves with SAE flange outlets using low cost standard hose assemblies. Made from Low Carbon Steel with a Zinc, yellow dichromate finish. Rated for 3000 P.S.I. working pressure (32 sizes - 2500 P.S.I.).

Flange Diameter	Tube OD	Thread Size	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1.188"	1/2"	3/4"-16	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50008WH	Log in to view price
1/2" x 1/2" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50008WH Package Weight: 0.3 lbs View Product Details Log in to Order
1.50"	1/2"	3/4"-16	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50008X12WH	Log in to view price
1/2" x 3/4" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50008X12WH Package Weight: 0.5 lbs View Product Details Log in to Order
1.50"	3/4"	1-1/16"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50012WH	Log in to view price
3/4" x 3/4" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50012WH Package Weight: 0.4 lbs View Product Details Log in to Order
1.75"	1"	1-5/16"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50016WH	Log in to view price
1" x 1" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50016WH Package Weight: 0.8 lbs View Product Details Log in to Order
1.75"	1-1/4"	1-5/8"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50020X16WH	Log in to view price
1-1/4" x 1" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50020X16WH Package Weight: 0.8 lbs View Product Details Log in to Order
2"	1"	1-5/16"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50016X20WH	Log in to view price
1" x 1-1/4" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50016X20WH Package Weight: 0.7 lbs View Product Details Log in to Order
2"	1-1/4"	1-5/8"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50020WH	Log in to view price
1-1/4" x 1-1/4" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50020WH Package Weight: 0.9 lbs View Product Details Log in to Order
2.375"	1-1/2"	1-7/8"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	50024WH	Log in to view price
1-1/2" x 1-1/2" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50024WH Package Weight: 1.4 lbs View Product Details Log in to Order
2.812"	2"	2-1/2"-12	Code 61	Low Carbon Steel	Adapter	2,500 P.S.I.	1	50032WH	Log in to view price
2" x 2" Split Flange (SAE Code 61) to Male SAE JIC 37° Straight Adapter Item #: 50032WH Package Weight: 2.7 lbs View Product Details Log in to Order

Split Flange (SAE Code 62) to Male SAE JIC 37° Adapter

ADAPTER USED WITH STANDARD FEMALE SWIVEL (JIC) END (CODE 62) designed to interconnect pumps and valves with SAE flange outlets. Made from AIS/SAE 12L14 carbon steel with a Zinc, yellow dichromate finish. Rated for a working pressure of 5000 P.S.I.

Flange Diameter	Tube OD	Thread Size	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1.62"	3/4"	1-1/16"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	60012WH	Log in to view price
3/4" x 3/4" Split Flange (SAE Code 62) to Male SAE JIC 37° Adapter Item #: 60012WH Package Weight: 0.5 lbs View Product Details Log in to Order
1.88"	1"	1-5/16"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	60016WH	Log in to view price
1" x 1" Split Flange (SAE Code 62) to Male SAE JIC 37° Adapter Item #: 60016WH Package Weight: 0.8 lbs View Product Details Log in to Order
2.12"	1-1/4"	1-5/8"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	60020WH	Log in to view price
1-1/4" x 1-1/4" Split Flange (SAE Code 62) to Male SAE JIC 37° Adapter Item #: 60020WH Package Weight: 1.3 lbs View Product Details Log in to Order
2.5"	1-1/2"	1-7/8"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	60024WH	Log in to view price
1-1/2" x 1-1/2" Split Flange (SAE Code 62) to Male SAE JIC 37° Adapter Item #: 60024WH Package Weight: 2 lbs View Product Details Log in to Order

Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter

Flange Diameter	Tube OD	Thread Size	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1.50"	3/4"	1-1/16"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	54512WH	Log in to view price
3/4" x 3/4" Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter Item #: 54512WH Package Weight: 0.4 lbs View Product Details Log in to Order
1.75"	1"	1-5/16"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	54516WH	Log in to view price
1" x 1" Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter Item #: 54516WH Package Weight: 0.7 lbs View Product Details Log in to Order
1.75"	1-1/4"	1-5/8"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	54520X16WH	Log in to view price
1-1/4" x 1" Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter Item #: 54520X16WH Package Weight: 1 lbs View Product Details Log in to Order
2"	1-1/4"	1-5/8"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	54520WH	Log in to view price
1-1/4" x 1-1/4" Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter Item #: 54520WH Package Weight: 0.9 lbs View Product Details Log in to Order
2.375"	1-1/2"	1-7/8"-12	Code 61	Low Carbon Steel	Adapter	3,000 P.S.I.	1	54524WH	Log in to view price
1-1/2" x 1-1/2" Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter Item #: 54524WH Package Weight: 1.8 lbs View Product Details Log in to Order
2.812"	2"	2-1/2"-12	Code 61	Carbon Steel	Adapter	2,500 P.S.I.	1	54532WH	Log in to view price
2" x 2" Split Flange (SAE Code 61) to Male SAE JIC 37° 45° Elbow Adapter Item #: 54532WH Package Weight: 3.5 lbs View Product Details Log in to Order

Split Flange (SAE Code 62) to Male SAE JIC 37° 45° Elbow Adapter

Flange Diameter	Tube OD	Thread Size	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1.62"	3/4"	1-1/16"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	64512WH	Log in to view price
3/4" x 3/4" Split Flange (SAE Code 62) to Male SAE JIC 37° 45° Elbow Adapter Item #: 64512WH Package Weight: 0.6 lbs View Product Details Log in to Order
1.88"	1"	1-5/16"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	64516WH	Log in to view price
1" x 1" Split Flange (SAE Code 62) to Male SAE JIC 37° 45° Elbow Adapter Item #: 64516WH Package Weight: 0.8 lbs View Product Details Log in to Order
2.12"	1-1/4"	1-5/8"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	64520WH	Log in to view price
1-1/4" x 1-1/4" Split Flange (SAE Code 62) to Male SAE JIC 37° 45° Elbow Adapter Item #: 64520WH Package Weight: 1.6 lbs View Product Details Log in to Order
2.5"	1-1/2"	1-7/8"-12	Code 62	12L14 Carbon Steel	Adapter	5,000 P.S.I.	1	64524WH	Log in to view price
1-1/2" x 1-1/2" Split Flange (SAE Code 62) to Male SAE JIC 37° 45° Elbow Adapter Item #: 64524WH Package Weight: 2.2 lbs View Product Details Log in to Order

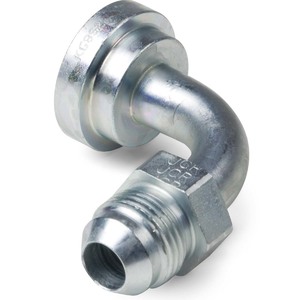

Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter

ADAPTER used with STANDARD FEMALE SWIVEL (JIC) END (CODE 61). Split flange adapter connects pumps and valves with SAE flange outlets using standard hose assemblies. Constructed from LOW CARBON STEEL with ZINC, YELLOW DICHROMATE finish. Rated for CODE 61 - 3000 P.S.I. working pressure (32 sizes - 2500 P.S.I.).

Flange Diameter	Tube OD	Thread Size	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1.188"	1/2"	3/4"-16	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59008WH	Log in to view price
1/2" x 1/2" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59008WH Package Weight: 0.2 lbs View Product Details Log in to Order
1.50"	1/2"	3/4"-16	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59008X12WH	Log in to view price
1/2" x 3/4" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59008X12WH Package Weight: 0.4 lbs View Product Details Log in to Order
1.50"	3/4"	1-1/16"-12	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59012WH	Log in to view price
3/4" x 3/4" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59012WH Package Weight: 0.5 lbs View Product Details Log in to Order
1.75"	3/4"	1-1/16"-12	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59012X16WH	Log in to view price
3/4" x 1" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59012X16WH Package Weight: 0.6 lbs View Product Details Log in to Order
1.75"	1"	1-5/16"-12	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59016WH	Log in to view price
1" x 1" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59016WH Package Weight: 0.8 lbs View Product Details Log in to Order
1.75"	1-1/4"	1-5/8"-12	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59020X16WH	Log in to view price
1-1/4" x 1" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59020X16WH Package Weight: 1.2 lbs View Product Details Log in to Order
2"	1"	1-5/16"-12	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59016X20WH	Log in to view price
1" x 1-1/4" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59016X20WH Package Weight: 0.9 lbs View Product Details Log in to Order
2"	1-1/4"	1-5/8"-12	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59020WH	Log in to view price
1-1/4" x 1-1/4" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59020WH Package Weight: 1.1 lbs View Product Details Log in to Order
2.375"	1-1/2"	1-7/8"-12	Code 61	Low Carbon Steel	90° Elbow	3,000 P.S.I.	1	59024WH	Log in to view price
1-1/2" x 1-1/2" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59024WH Package Weight: 2 lbs View Product Details Log in to Order
2.812"	2"	2-1/2"-12	Code 61	Low Carbon Steel	90° Elbow	2,500 P.S.I.	1	59032WH	Log in to view price
2" x 2" Split Flange (SAE Code 61) to Male SAE JIC 37° 90° Elbow Adapter Item #: 59032WH Package Weight: 4.1 lbs View Product Details Log in to Order

Split Flange (SAE Code 62) to Male SAE JIC 37° 90° Elbow Adapter

Flange Diameter	Tube OD	Thread Size	End Type	Material	Shape	Maximum Pressure	Package Qty	Item #	Price Want to view pricing for this product? Log In or Create Login Not a Kimball Midwest Customer? Register
1.62"	3/4"	1-1/16"-12	Code 62	12L14 Carbon Steel	90° Elbow	5,000 P.S.I.	1	69012WH	Log in to view price
3/4" x 3/4" Split Flange (SAE Code 62) to Male SAE JIC 37° 90° Elbow Adapter Item #: 69012WH Package Weight: 0.6 lbs View Product Details Log in to Order
1.88"	1"	1-5/16"-12	Code 62	12L14 Carbon Steel	90° Elbow	5,000 P.S.I.	1	69016WH	Log in to view price
1" x 1" Split Flange (SAE Code 62) to Male SAE JIC 37° 90° Elbow Adapter Item #: 69016WH Package Weight: 1 lbs View Product Details Log in to Order
2.12"	1-1/4"	1-5/8"-12	Code 62	12L14 Carbon Steel	90° Elbow	5,000 P.S.I.	1	69020WH	Log in to view price
1-1/4" x 1-1/4" Split Flange (SAE Code 62) to Male SAE JIC 37° 90° Elbow Adapter Item #: 69020WH Package Weight: 1.7 lbs View Product Details Log in to Order
2.5"	1-1/2"	1-7/8"-12	Code 62	12L14 Carbon Steel	90° Elbow	5,000 P.S.I.	1	69024WH	Log in to view price
1-1/2" x 1-1/2" Split Flange (SAE Code 62) to Male SAE JIC 37° 90° Elbow Adapter Item #: 69024WH Package Weight: 2.4 lbs View Product Details Log in to Order
